Eaton Moeller 014752 ZE-12 Overload Relay 9.0 amp - 12.0 amp
Part No.:
Eaton Moeller 014752 ZE-12 Overload Relay 9.0 amp - 12.0 amp
3 main contacts plus 1 pair of normally open & 1 pair of normally closed contacts (the normally closed are used for the hold in circuit of the contactor.The open are moved to a closed position if a overload happens these then can be used for audible or visual warnings
For use with the DILEM range of Mini Contactors
Catalogue No1: ZE-12
Catalogue No2: 14752

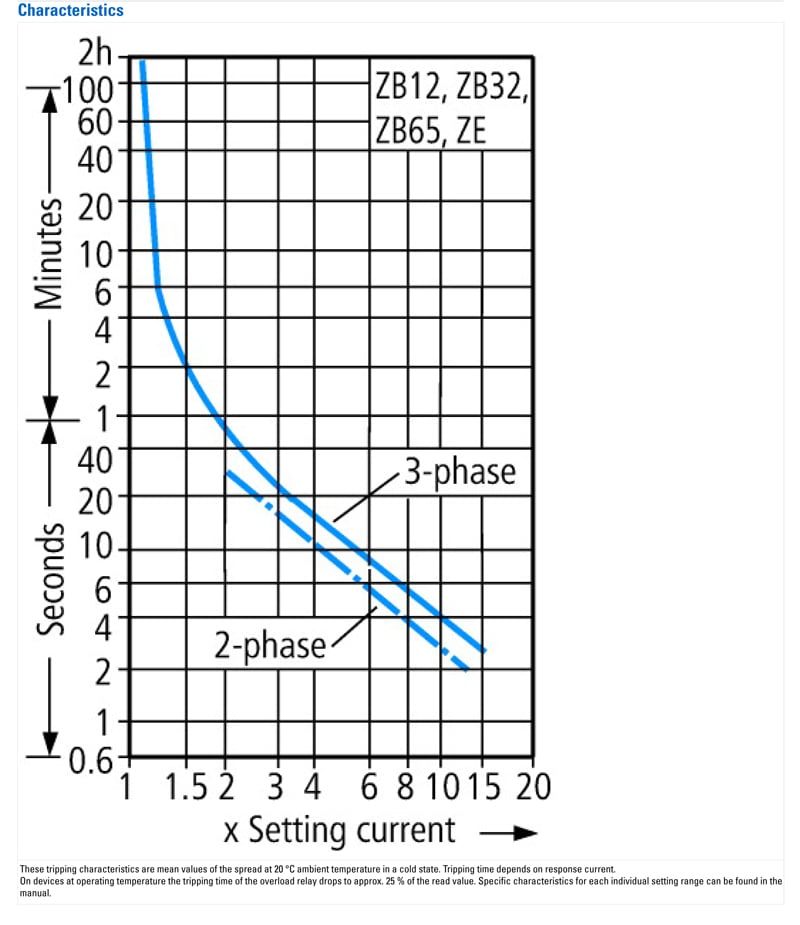

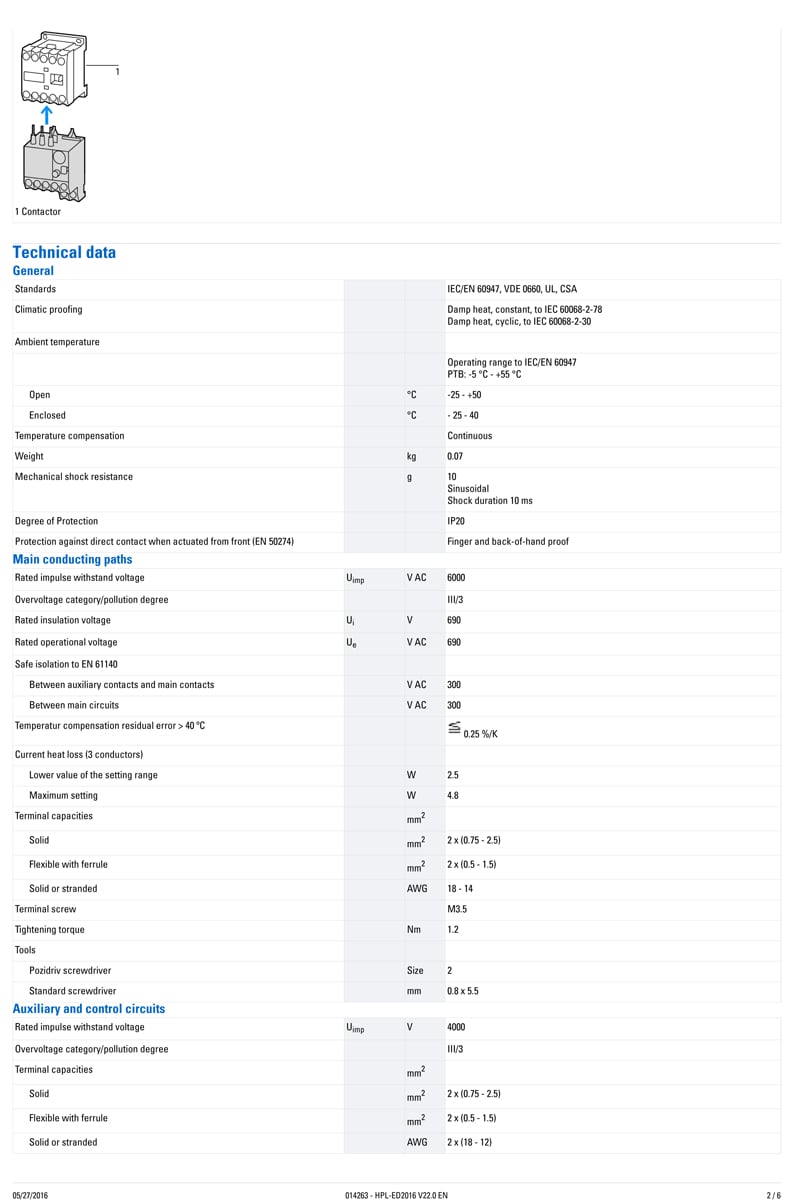

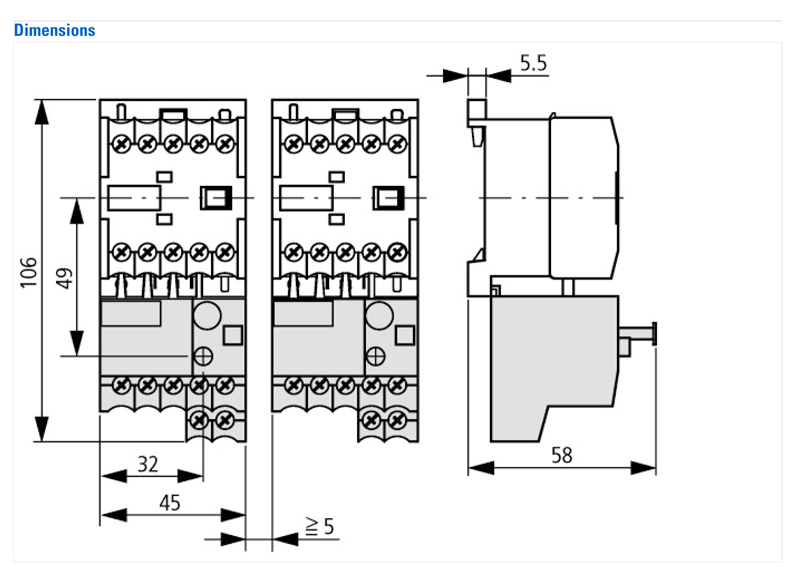

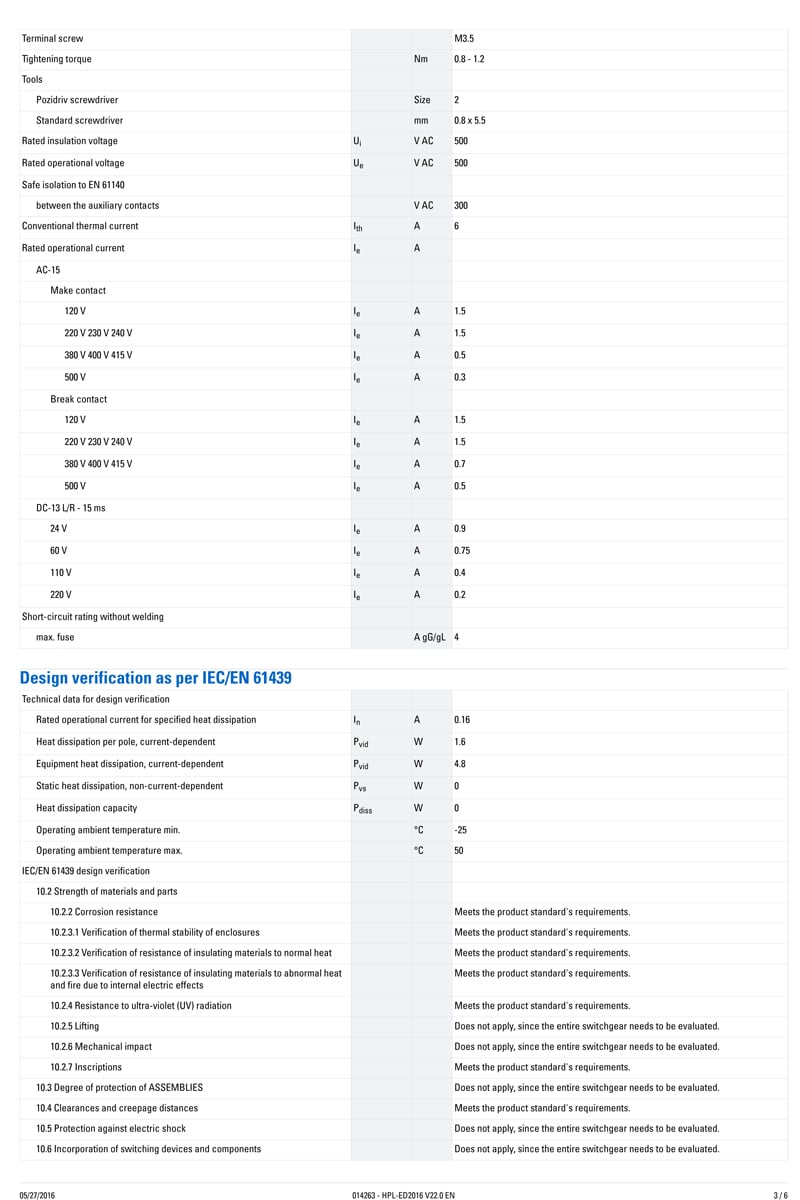

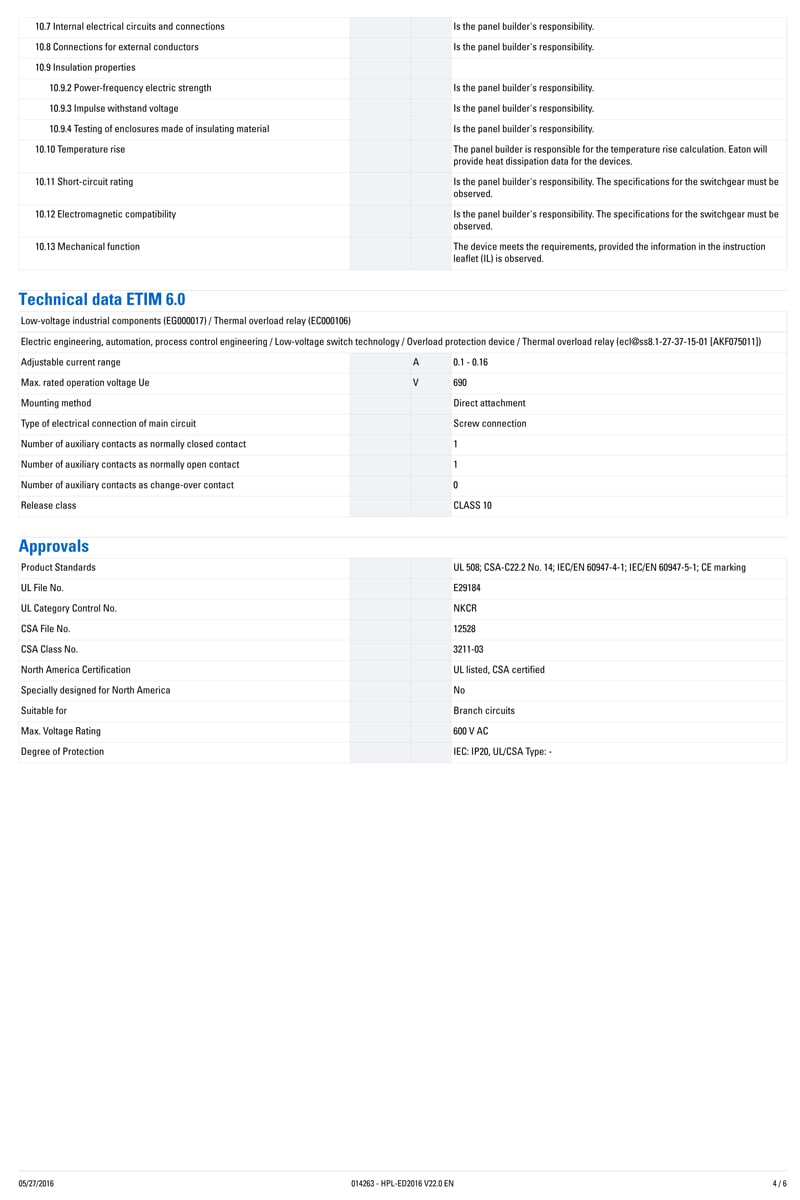

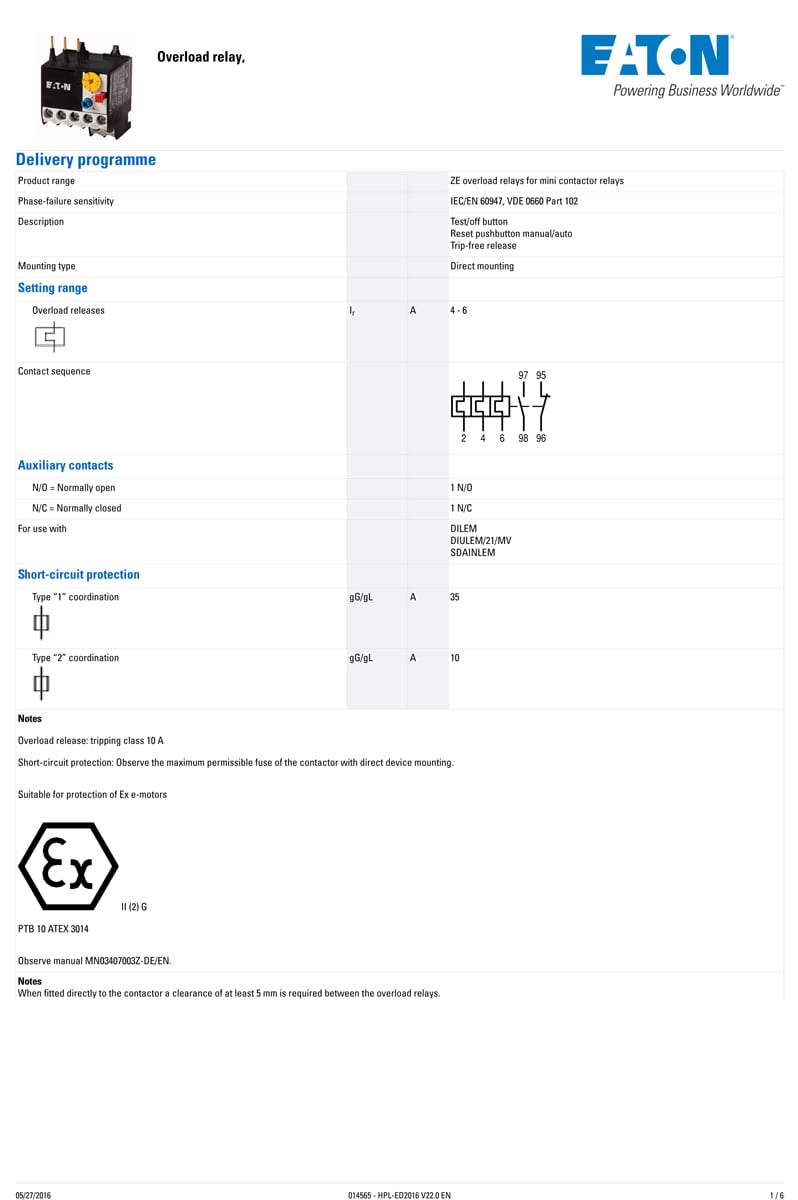

For Technical information and Dimensions CLICK on the picture to open up the product and scroll down to Product Files
Features:
Protection with phase loss and overload
Auxiliary contacts switch off the motor protection and signal the fault
Suitable for protection of EEx e-motors
Optimised for the xStart concept
