Eaton Moeller 049824 11DDILE 1 N/O EM & 1 N/C LB Auxiliary Block

Eaton Moeller 049824 11DDILE, 1 Normally Open & 1 Normally Closed Contact Auxiliary Block for Mini Contactors.

Of the contacts 1 act as a pair Early Make and the other pair as Late brake

DILEM-10(-G) & DILEM-4(-G).

DILEM-01(-G) & DILEM-4(-G)

Catalogue No1: 11DDILE

Catalogue No2: 049824

Auxiliary Contact Modules have interlocked opposing contacts (does not apply to early-make or late-break contacts).

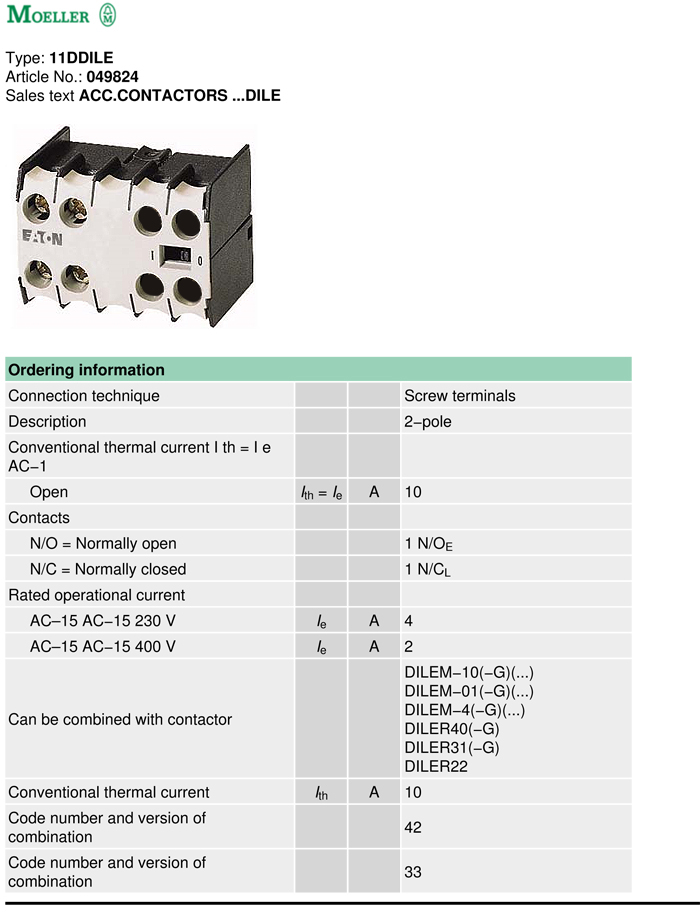

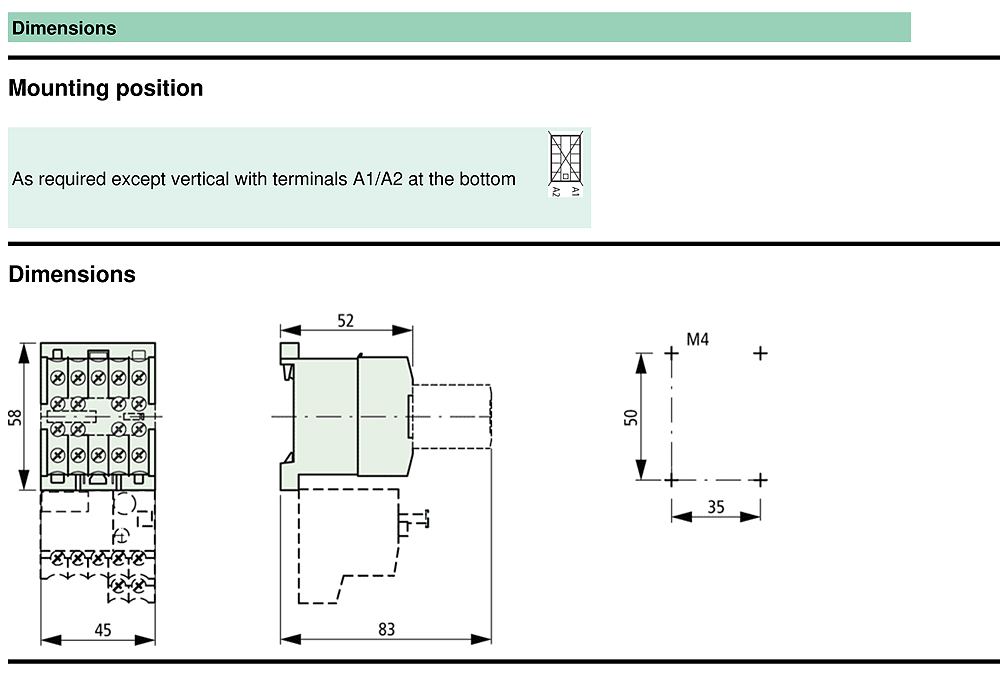

For more specification including size click on this product picture and scroll down to see Product files below
