Eaton Moeller DILA-40 415v50hz Coil 10a Relay 4 N/O contacts

Eaton Moeller DIL-A Relays are desinged for rapid multipule repetitive operations

DILA-40 415v50hz Coil 10 Amp Relay with 4 Normally Open contacts

Catalogue No1: DILA-40(400V50HZ440V60HZ)

Catalogue No2: 276331

Rated operational current AC–15

220/240 6 amp

380/415 4  amp

500 V  1,5 amp

Interlocked opposing contacts to ZH 1/457, including auxiliary contact modules (Where applicable)

Maximum rated insulation and operationable voltage 690volts

Din rail mounting 35mm

IP20

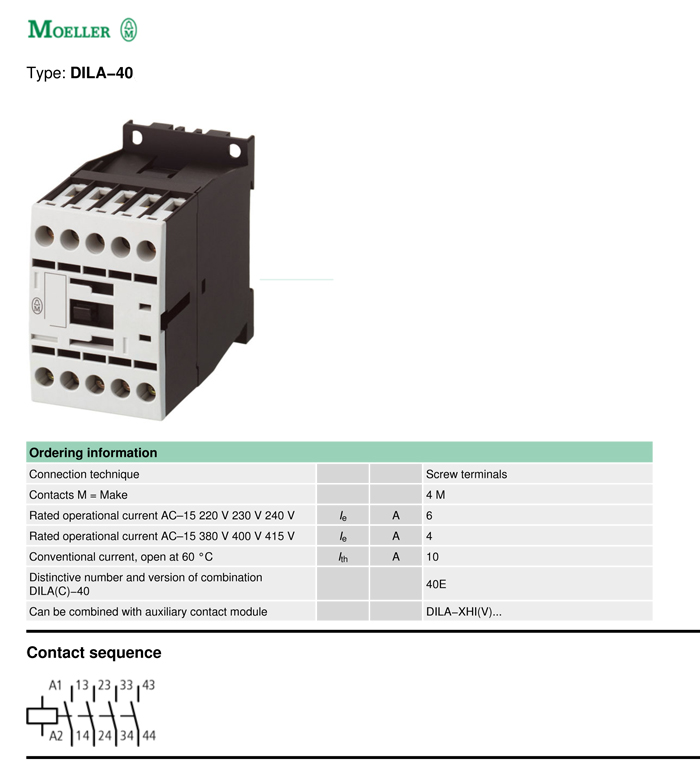

For more Specification click on product picture and then click on Product File at the bottom of the Page
