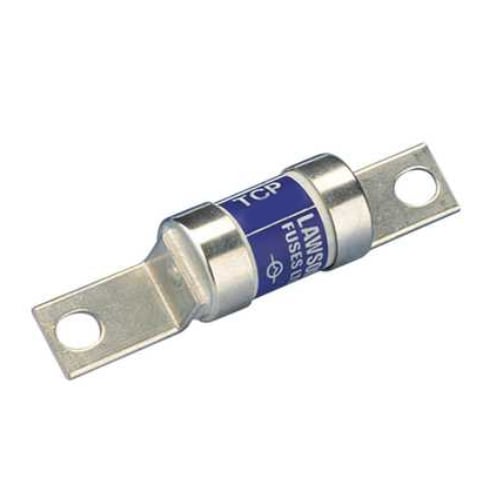

TCP CEO SD5 Range 110x51mm

The TCP range of HRC Fuses 400/415 Volt Industrial Fuse-Links with Bolted Connections to BS88: Pa rt 2 IEC60269-2 EN60269-2 Rated voltages: 415V a.c., 250V d.c. Breaking range and utilization category: gG Rated breaking capacities: 80kA at 415V a.c, 40kA at 250V d.c. Lawson Type 'T' fuse-links are for use in industrial installations and can be fitted into BS88 bolted fuse-holders and distribution fusegear. The range includes all BS88: Part 2 reference fuse-links up to 800 Amps and has gG classification , ensuring compliance with the current edition of the UK Wiring Regulations. Many non-reference tag variants are available to cater for installation in non-standard or specialised equipment . The range has a rated voltage of 415V a.c. and has been certified at a test recovery voltage of at least 110%. These fuselinks are there fore suitable for use on systems with voltages up to 457V a.c. The range also has a rating of 250V d. c.
